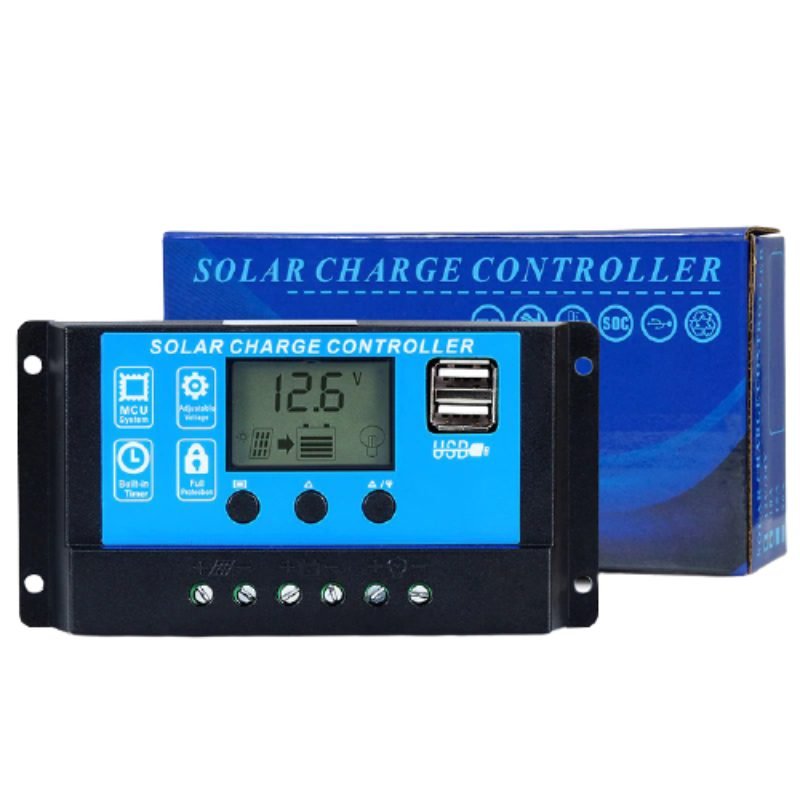

PWM 60A LCD Display Solar Charge Controller 12V/24V

Highlights:
Rated charge current: 60A
Rated discharge current: 60A
Max. solar input: < 50V
Float charge voltage: 13.7V
Shutoff voltage of discharge: 10.7V
Recovering voltage of discharge: 12.6V
Output power(dual USB): 5V/3A
Standby current: < 10mA
Operating temperature: -35’C to 60’C
System voltage: 12V/24V (Auto)
Battery Option (GEL,LEAD-ACID, FLOODED, Lithium-ion LiFePO4)

Description:
Build-in industrial microcontroller.
Large LCD display, all adjustable parameter.
Full 4-stage PWM cargo management.
Built-in short circuit protection, open circuit protection, reverse protection, overload protection.
Dual Reverse current protection, low heat production.
Adjustable charge and discharge parameters
Integrated 3 steps PWM charging management
Safe protections: Short circuit/open circuit protection, overcurrent protection, reverse polarity protection
Dual MOS anti-backflow circuit, low heat dissipation
Can charge for cell phones or tablet PCs via USB port

What is in the box: 1 x solar charge controller , 1 x User Manual

Weight: 0.3

SKU: 211021092421
